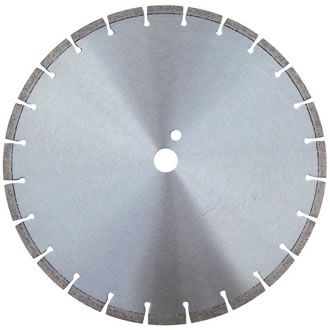

Laser Welded Blade
| Asphalt | ||||
| Outer Diameter(D) | Hole Diameter(H) | Segment Dimension | Segment | |
| Inches | Metric(mm) | (T*H*L) | Number | |
| 9" | 230 | 20/22.23 | 2.5*7*40 | 16 |
| 10" | 250 | 22.23/25.4 | 2.5*7*40 | 17/18 |
| 12" | 300 | 25.4/50 | 2.8*7*40 | 20/21 |
| 14" | 350 | 25.4/50 | 2.8*7*40 | 24 |
| 16" | 400 | 25.4/50 | 3.2*7*40 | 28 |
| 18' | 450 | 25.4/50 | 3.2*7*40 | 32 |
| 20" | 500 | 25.4/50 | 3.2*7*40 | 36 |
| 22" | 550 | 25.4/50 | 3.2*7*40 | 38 |
| 24" | 600 | 25.4/50 | 3.2*7*40 | 42 |
| Granite/Marble | ||||
| Outer Diameter(D) | Hole Diameter(H) | Segment Dimension | Segment | |
| Inches | Metric(mm) | (T*H*L) | Number | |
| 4" | 105 | 20/22.23 | 1.7*7*35 | 8 |
| 4.5" | 115 | 20/22.23 | 2.0*7*32 | 9 |
| 5" | 125 | 20/22.23 | 2.0*7*32 | 10 |
| 6" | 150 | 20/22.23 | 2.2*7*33 | 11 |
| 7" | 180 | 20/22.23 | 2.2*7*35 | 13 |
| 9" | 230 | 20/22.23 | 2.5*7*40 | 16 |
| 10" | 250 | 22.23/25.4 | 2.5*7*40 | 17/18 |
| 12" | 300 | 22.23/25.4/50 | 2.8*7*40 | 20/21 |
| 14" | 350 | 25.4/50 | 2.8*7*40 | 24 |
| 16" | 400 | 25.4/50 | 3.2*7*40 | 28 |
| 18" | 450 | 25.4/50 | 3.2*7*40 | 32 |
| 20" | 500 | 25.4/50 | 3.2*7*40 | 36 |
| 22" | 550 | 25.4/50 | 3.2*7*40 | 38 |
| 24" | 600 | 25.4/50 | 3.2*7*40 | 42 |
Laser-welding represents the latest advanced welding in diamond disc fabrication technology. The advantages include high automation, excellent stability, strong adhesion between the segment and the steel base. Discs under this technology allow longer lifetime and higher efficiency and safety for operators.
Laser welded blades designed with other specifications and sizes are available upon request.
Hangzhou FANXI Tools Company is a professional laser welded blade supplier in China. Our company is located in Hangzhou, capital of Zhejiang province, where we are near air, sea and land transportation facilities. You can choose one of them according to your own convenience.
We provide different specifications of drill bits and saw blades, including TCT saw blades, masonry drill bits, wood drill bits. These high-quality laser welded blades are at reasonable prices. Welcome agents to contact us.
Our TCT circular saw blades are for cutting wood, aluminum, non-ferrous metals and steel, with laser-welded, brazed and turbo variants. Tooth count, kerf and bore can be made to your specifications for dry or wet cutting applications.
MOQ depends on the product type and specification. Trial orders and mixed-container orders are welcome - contact us with your target items and we will confirm the MOQ in the quotation.
Yes. OEM and ODM cooperation is welcome, including your brand, packaging and specifications. As a manufacturer in Hangzhou, China since 2006, we support custom production for importers and wholesalers worldwide.
Email ligenie@gmail.com, call +86-571-86758131 or WhatsApp +86 153 3654 6084 with the items and quantities you need. We reply with prices and a clear delivery date, and samples are available for quality checking before bulk orders.
